The Role of Heald and Dropper's Thickness in Weaving Performance

In weaving, precision is not only defined by machines, but by the smallest components guiding every yarn. Among them, healds and droppers play a critical role in controlling yarn movement, tension, and break detection. One often overlooked factor in their performance is thickness—both in the mail-eye (eyelet) and in the overall lamella structure.

The thickness of a heald directly influences how the yarn interacts with the loom. A thinner mail-eye reduces friction, allowing smoother yarn passage and minimizing filament damage. This is especially important when working with fine or delicate yarns, where excessive friction can lead to breaks, irregularities, or quality defects.

Conversely, thicker healds provide greater mechanical strength and stability. This is essential in high-speed weaving or when processing coarser yarns, where components are exposed to higher tension and continuous mechanical stress. In practice, thickness can vary significantly—ranging from approximately 0.2 mm to 0.8 mm depending on the application, enabling manufacturers to adapt to different production conditions .

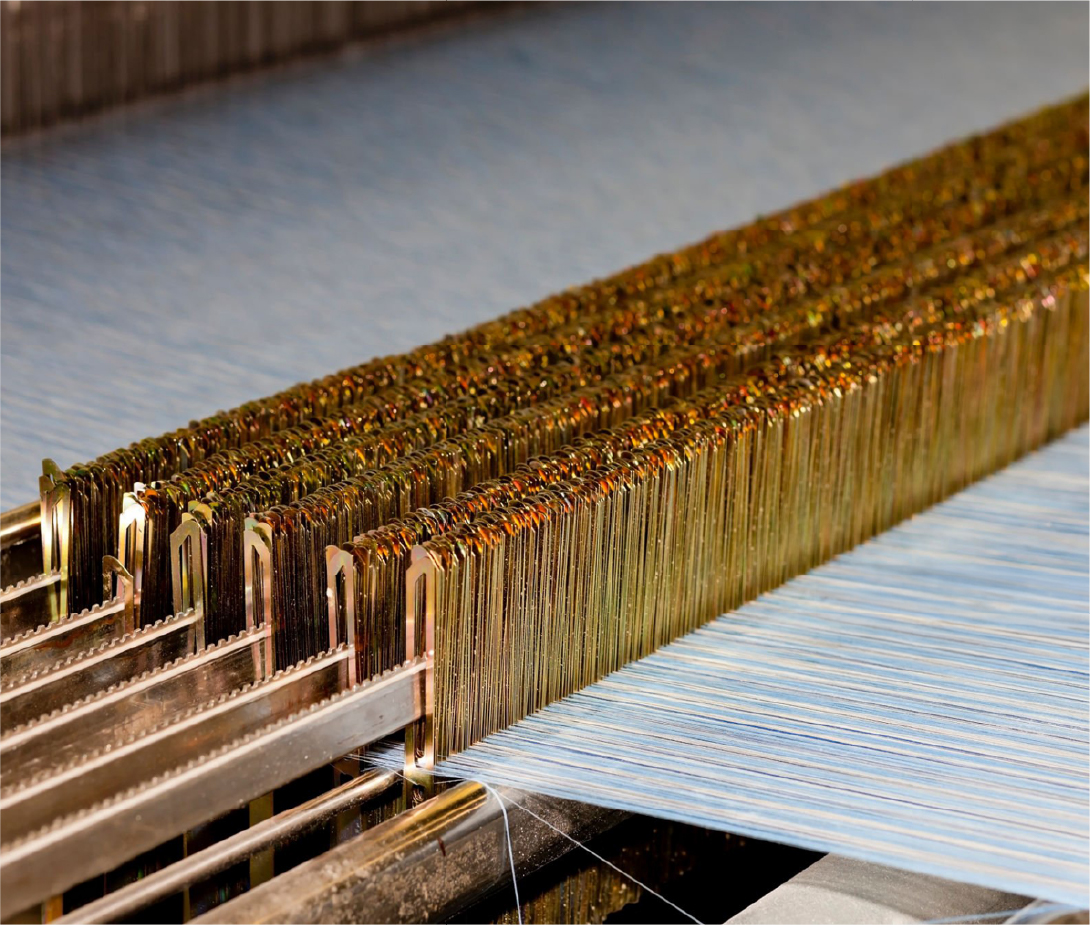

Droppers follow a similar principle. Their thickness directly impacts the sensitivity of warp stop motion systems. Thinner droppers can react faster to yarn breakage, improving detection accuracy and reducing fabric defects. Meanwhile, thicker droppers offer increased durability in demanding environments where resistance to wear is critical.

Surface quality also plays a key role. Smooth, abrasion-resistant eyelets reduce yarn damage and help maintain consistent fabric quality over long production runs. Combined with the right thickness, this ensures an optimal balance between performance and durability.

Ultimately, selecting the correct thickness is not a minor technical detail—it is a strategic decision. It affects loom efficiency, yarn integrity, maintenance frequency, and final fabric quality.

For manufacturers looking to optimize their weaving processes, understanding these variables is essential. This is where working with specialized partners and high-quality components becomes a key advantage.
